24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

Product Categories
Zhongshan NoonLighting Co., Ltd.
Contact Now

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

Brand Name : Noonlight

Model Number : N-HBL

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 300

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 10pcs/CTN, Packing Dimension: L655xW270xH312 mm

Product Name : 1FTx4FT 128W Equivalent Back-lit LED Panel LIGHT COLOR & WATTAGE ADJUSTABLE

Power : 150W-170W-190W-210W Adjustable

CCT : 30K/35K/40K/50K CCT Tunable

Waterproof : IP-65

Installation : Surface Mounted, Wall Mounted

Warranty(Year) : 5 years warrantly

Contact Now

1FTx4FT 128W Equivalent Back-lit LED Panel LIGHT COLOR & WATTAGE ADJUSTABLE

  • Available in Clear Lens, Frosted Lens and Angled Lens.​
  • Available in 120-347VAC or 347-480VAC Class P Programmable LED Driver, 0-10V Dimming, Dim to Off.​
  • Available in 1x2’ wide and 1x4’ sizes, this product has a 0-10V Dimming Driver Standard (10% – 100%) and operating temperature of -40°C to +40°C (-40°F to +104°F), 30°C (86°F).

​

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

​

  • 1x4 linear high bay 1 Driver only for All of Power Up to 320W with Class 2 Certificated(100-347VAC only)
  • 4 Step Power Adujustable, and 3 CCT Tunable(Optional), minimize stock, 1 SKU can cover max. of 12 models.
  • Front Access Door for Easy Maintenance
  • Various Lens Option: Clear, Frosted, Angled lens
  • DLC5.1 Premium LED Linear high bay Up to 165LM/W, Range From 5000lm-53000lm

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

SERIES DIMENSIONS
N-HBL-14 L46.44 x W16.1 xH1.77”

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

Model No DLC Input Voltage Wattage Lens CCT Rated Lumen @ 50K

Rated

Efficancy

@ 50K

 Viewing Angle Replacing
N-HBL-14-150W-8XX-F-CTPA-[Blank,HV]-SN Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 150

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 24750 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-170W-8XX-F-CTPA-[Blank,HV]-SN

Pending

 170 28050 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-190W-8XX-F-CTPA-[Blank,HV]-SN Pending 190 31350 165 120°

1000WMH,

12-lamp T5HO
N-HBL-14-210W-8XX-F-CTPA-[Blank,HV]-SN Pending 210 34650 165 120°

1000WMH,

12-lamp T5HO
N-HBL-14-190W-8XX-F-CTPA-[Blank,HV]-SN Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 190

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 31350 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-210W-8XX-F-CTPA-[Blank,HV]-SN

Pending

 210 34650 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-230W-8XX-F-CTPA-[Blank,HV]-SN Pending 230 37950 165 120°

1000WMH,

12-lamp T5HO
N-HBL-14-250W-8XX-F-CTPA-[Blank,HV]-SN Pending 250 41250 165 120°

1000WMH,

12-lamp T5HO
N-HBL-14-260W-8XX-F-CTPA-[Blank,HV]-SN Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 260

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 42900 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-280W-8XX-F-CTPA-[Blank,HV]-SN

Pending

 280 46200 165 120°

875W MH,

10-lamp T5HO
N-HBL-14-300W-8XX-F-CTPA-[Blank,HV]-SN Pending 300 49500 165 120°

1000WMH,

12-lamp T5HO
N-HBL-14-320W-8XX-F-CTPA-[Blank,HV]-SN Pending 320 52800 165 120°

1000WMH,

12-lamp T5HO

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

120-277Vac Linear highbay Suitable for Surface mounted, suspended mounted.

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted 24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

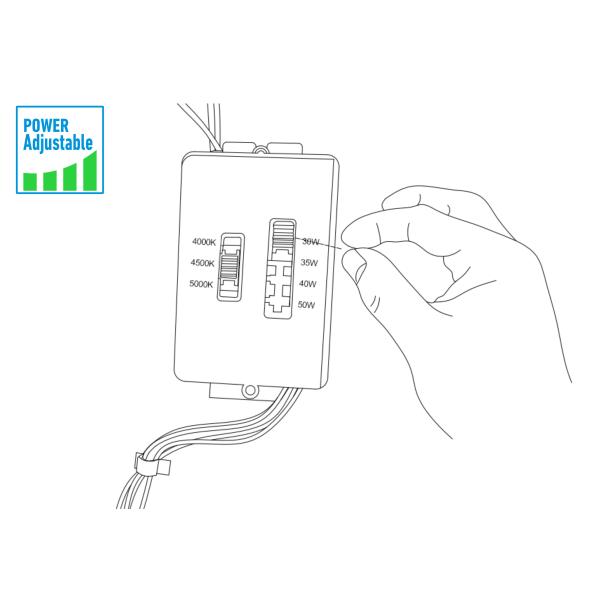

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

Power Adjustable Slide Switch Position
Size/Positon 0 1 2 3
1X4 150 170 190 210
1X4 190 210 230 250
1X4 260 280 300 320

CCT Tunable Slide Switch Position
Position/Group CCT
Low 4000K
Middle 4500K
High 5000K

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

24750lm LED Linear High Bay Lights , 150W Linear High Bay Wall Mounted

Schools, offices, conference room, hospitality etc.
